Varstrom 29 Inch DIY eBike with Bafang Mid Drive Kits and Hailong Down Tube Battery
Latest DIY eBike Experience
Varstrom is implementing a new e to bike conversion experience, if you wish to enjoy the cost effectiveness of a converted e to bike, but you don't have a bike in your garage, then you can consider this new type of e to bike kit from Varstrom. It may not have the most beautiful appearance, but it must be the most practical way to get an eBike. Another advantage is that you do not need to consider if the kits or accessories are fit to the bike, because we have already found a bike for you. So you only need to choose a rated power value of the bike, a display you like, and an ideal battery. Then we will ship everything together to your home so you can realize your e to bike conversion plan.
PS: What you will receive is a bike, a mid drive kits with display and a battery.
About the Bike
To better match the Bafang mid drive motor kit, we choose this frame and fork. Aluminum frame, aluminum front fork with lockable suspension, which makes your riding more stable and more comfortable. Also it comes with front and rear hydraulic disc brakes, allows more precise braking, reduces the possibility of tires locking up when re to braking. SHIMANO shifting system, a professional and famous gear shifting system, ensures smooth gear shifts.
Choose the eBike Power
Varstrom provides Bafang mid drive kits, 250W/36V, 250W/48V, 350W/36V, 500W/36V, 500W/48V, 750W/48V, 1000W/48V, 1000W/52V. If you buy an e-bike directly, you can never find such a wide range of power for you to choose.

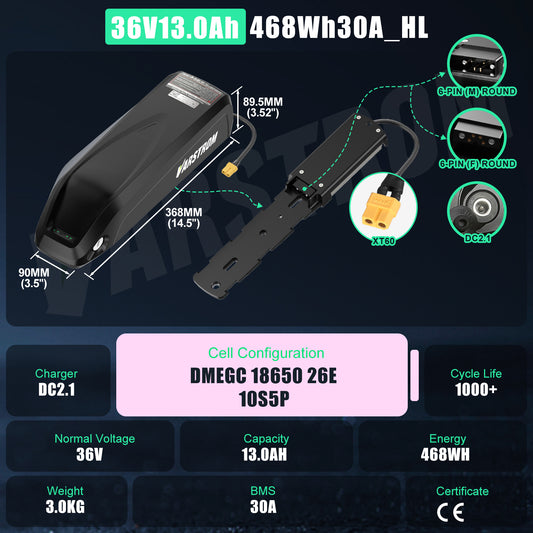

Choose Down Tube Battery
There are 2 kinds of battery provided for your choice, 48V or 36V, which matches the corresponding motor you choose.
- 48V/17.5Ah battery and 750W/48V motor, the cycling mileage under pure electric bike mode per full charging is 45 to 55 (km), and under pedal assisted mode is 90 to 110 (km);
- With 48V/13Ah Battery and 750W/48V motor, the cycling mileage under pure electric bike mode per full charging is 35 to 45 (km), and under pedal assisted mode is 70 to 90 (km);
- With 36V/21Ah Battery and 250W/36V motor, the cycling mileage under pure electric bike mode per full charging is 70 to 80 (km), and under pedal assisted mode is 140 to 160 (km);
- With 36V/17.4Ah Battery and 250W/36V motor, the cycling mileage under pure electric bike mode per full charging is 60 to 70 (km), and under pedal assisted mode is 120 to 140 (km);
- With 36V/15Ah Battery and 250W/36V motor, the cycling mileage under pure electric bike mode per full charging is 50 to 60 (km), and under pedal assisted mode is 100 to 120 (km).
Choose the Display
Varstrom provides UART protocols displays for Bafang BBS or BBSHD eBike conversion kits. Such as Bafang DP C18, DP C181, C961; Varstrom Touch 1, P860C, P850C, B750C, 500C, 800S, DM03. You can always find your favorite display and use it on the e-bike.
The most important is you can get an eBike for the price of a high-end motor kit. This may be the most cost effective way with most choices to get an electric bike on the market except modifying your own bike.

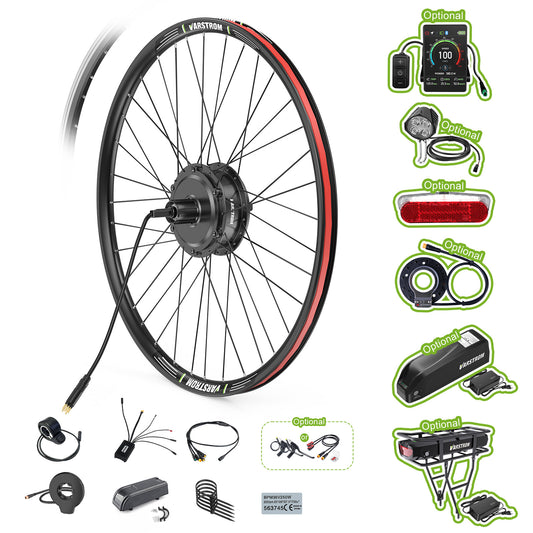

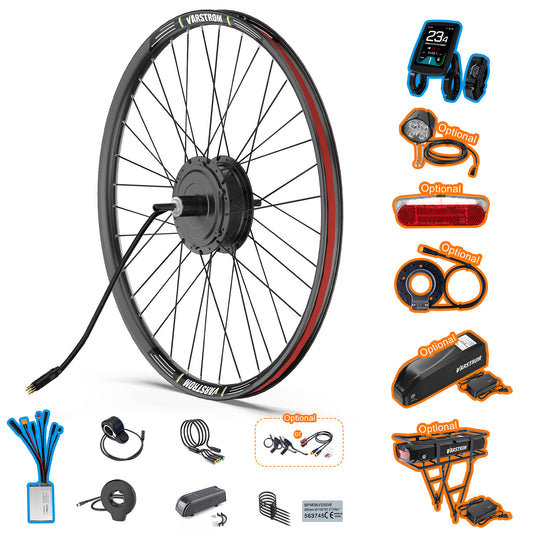

Bafang Hub Motors
Bafang & Accolmile
Varstrom provides two brands of display, Bafang Displays and Varstrom Displays. We highly recommend our customers to consider our meters because our meters have the same performance as Bafang's but the price is much cheaper, it helps you complete the ebike conversion with lower budget.
Bafang BBS01B Mid Drive
Display for Bafang eBike Kits
Accolmile Antelope 250W 36V 700C eCITY Bike with Bafang M200 Mid Drive Kits
Made for eCITY
In order to improve the convenience of urban cycling and urban transportation Accolmile creates Antelope, a light and easy to control electric bike for eCITY. Antelope makes short trips (under 6 mile) faster and easier. You can ride to the market, ride to work, do short-distance delivery or ride to the park.
Bafang Compact Mid Drive Motor
Antelope has built-in Bafang M200 Mid Drive, it features smooth, silent and very economic riding. The compact M200 mid-motor shines with an overwhelming cost-performance ratio. Weighing just 3.2kg at 250W rated power output and 65Nm of max. torque, it is perfectly suited to entry-level eCity bikes.
Comes with Bafang LCD Display
Antelope has a Bafang DP C13 display, this device shows all needed information of the bike and trip, such as real-time speed, mileage indicator, battery status, assist level, front light indicator and error code. It makes the trip safer and clear.
36V 15Ah Power Source
A Waterproof Removable 36V battery can provide enough energy for daily city trips. And you don't have to worry about the rain, the Antelope can move steadily in the drizzle. **If the weather is too bad like rainstorm, Varstrom don’t recommend traveling by bike, no matter what kind of bike.
Hydraulic brake, 8-speed SHIMANO system, LED front and rear lights. Antelope brings together almost all the functions needed for city riding and has been test by Accolmile time and time again, making it a ecity electric bike that customers can buy with confidence.
Guarantee and Warranty
Accolmile and Varstrom came from a same company, Accolmile focus on complete eBike when Varstrom focus on Bafang eBike conversion kits. As long as the product is packed and the pack is not disassembled, we offer a 14-day unconditional return for a refund. Varstrom and Accolmile also provide 1-year free warranty, and lifetime paid warranty.
- Motor: BAFANG 36V 250W M200 Mid Drive Motor
- Battery: 36 (V) 15 (Ah)
- Charger: 2 (A)
- Charging time: 7 to 8 (h)
- Max Speed: 25 (km/h)
- Riding Range: 130 to 150 (km)
- Riding Models: Pedal Assistance
- Loading: 150 (kg)
- Bike Weight: 26.7 (kg)
- Color: Black, White
- Display: Bafang DP C13
- Frame: Aluminium Alloy
- Tire: 700*40C (in)
- Front Fork: Full Suspension
- Brakes: Front and Rear Disc Oil Brakes
- Flywheel: 11 to 32-tooth SILVER Cassette
- Rear Dial: SHIMANO 8-speed
- Power Assistance Level: 5 Levels
- Chain Wheel: 38-tooth
- Light: Front/Tail Light
- Suitable Height: 157 to 200 (cm)
Please make sure your handlebar grips are always intact and in good condition. Uncovered handlebar tubes can be very dangerous.
The maximum weight of the rear rack is 20 kg, it is not recommended to carry people.
There is the Unique Series No. on the bike frame. We recommend that you take a photo as proof after receiving the ebike.
